Enystar Empty Enclosures

Name: Enystar Empty Enclosures
Brand: Emson Power Engineers
Price: 12805.0 INR
Availability: InStock

Price 12805.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Enystar Empty Enclosures Specification

Humidity %
Up to 95% RH, Non-Condensing

IP Rating
IP66 / IP65 / IP55 (depending on model)

Overheating Protection
Material is Self-Extinguishing UL94 V-0

Efficiency
N/A (Passive Enclosure)

Power Factor
N/A (Passive Enclosure)

Feature
Modular Construction, High Mechanical Strength, UV Resistant, Chemical Resistant

Connector Type
Knockouts and cable glands compatible

Shape
Rectangular / Square

Surface Finish
Smooth, Textured Exterior

Operating Temperature
-25C to +60C

Insulation Material
High Grade Plastic Insulation

Mounting Type
Wall Mount / Surface Mount

Product Type
Empty Enclosure

Application
Electrical Distribution, Control Panel Housing

Protection Level
High Impact, Weather Resistance

Frequency (MHz)
50/60 Hz

Rated Voltage
Up to 690V AC

Energy Consumption
N/A (Passive Enclosure)

Output Type
N/A (Passive Enclosure)

Color
Light Grey (RAL 7035)

Dimension (L*W*H)
120x90x70 mm to 540x375x130 mm (various sizes available)

Weight
5 Kilograms (kg)

Phase
PHASE 3

Input Voltage
N/A (Passive Enclosure)

Size
Varies as per selection

Material
Polycarbonate or ABS (depending on model)

Connection Type
Screw terminal provision / Customizable entry plates

No Of Poles
Customizable / As required

Locking System
Quick Release Latches or Tamper-proof Screws

Standards Complied
IEC 62208, RoHS

Flammability Class
UL94 V-0 (polycarbonate models)

Impact Resistance
IK08 / IK09 Rated

Gland Plates
Available for cable entry

Accessories
DIN Rails, Mounting Plate, Internal Base Plate (optional)

Sealing Gasket
PU Foam Gasket for IP Protection

Expandable
Enclosures can be coupled side by side for modularity

Lid Type
Transparent or Opaque Lid Option

Enystar Empty Enclosures Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Empty Enclosures

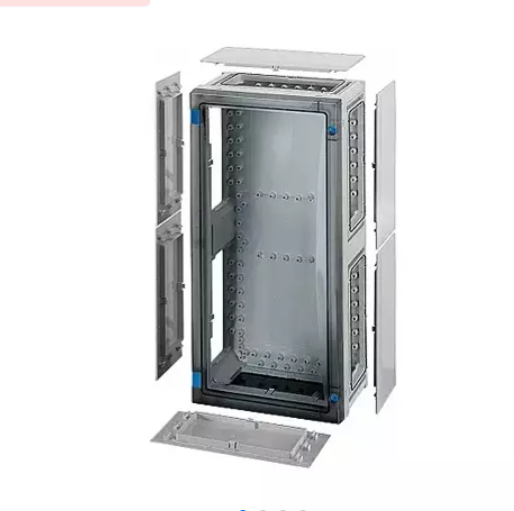

Combinable enclosure system with door for the assembly of distribution boards up to 250 A to be opperated by ordinary persons (DBO) in accordance with IEC 61439-3 for surface-mounting. Enclosures are suitable for the outdoor installation - harsh environment and / or outdoor, however the climatic influences and effects on the equipment are to be considered. Bottom parts and doors are made from impact-resistant polycarbonate, halogen- and silicone-free, colour RAL 7035. All enclosures with doors, which are lockable and sealable. Operation of device behind the doors. Burning behavior in accordance with IEC 60695-2-11 Glow wire test + 960 C. Protective measure: protective insulation (protection class II). Make: Hensel ENYSTAR.

Superior Protection for Demanding Applications

Engineered for high-impact strength and weather resistance, Enystar Empty Enclosures provide exceptional safeguarding for sensitive equipment. Their UL94 V-0 polycarbonate housing ensures flammability safety, while IP65-IP66 sealing with PU foam gaskets protects against dust and water ingress. These enclosures are ideal for both indoor and outdoor deployment across diverse environments, thanks to their wide operating temperature range and advanced material formulation.

Versatile and Modular Design

Offering both rectangular and square shapes, these enclosures are customizable for varied dimensions and connection needs. Equipped with features like DIN rails, internal base plates, and removable gland plates, they support modular expansion-allowing units to be coupled for scalable installations. Quick-release latches or tamper-proof screws facilitate secure and convenient access, making them suitable for evolving system requirements.

Compliance and Quality Assured

Enystar Empty Enclosures adhere to IEC 62208, RoHS, and UL94 V-0 standards, ensuring maximum safety and environmental compliance. Their RoHS certification makes them ideal for applications requiring high regulatory standards, and the IK08/IK09 impact ratings highlight the reliability and mechanical strength demanded by modern industrial settings.

FAQ's of Enystar Empty Enclosures:

Q: What standards and certifications do Enystar Empty Enclosures comply with?

A: Enystar Empty Enclosures are rigorously manufactured according to IEC 62208 and RoHS directives. The polycarbonate variants also meet UL94 V-0 flammability standards, supporting high safety and regulatory requirements within industrial and control panel environments.

Q: How do I select between the transparent and opaque lid options?

A: Choosing between transparent and opaque lids depends on your monitoring requirements. Transparent lids are recommended when visual inspection of internal components is necessary, while opaque lids offer enhanced privacy and UV protection for sensitive electronics.

Q: Where can Enystar Empty Enclosures be installed?

A: These enclosures are versatile and suitable for both indoor and outdoor installations. Thanks to their IP65/IP66/IP55 ratings and resistance to UV, chemicals, and high impact, they can be wall-mounted or surface-mounted in industrial, commercial, or harsh outdoor settings.

Q: What are the available accessories and configuration options?

A: Enystar Empty Enclosures offer a range of accessories, including DIN rails, mounting plates, and internal base plates. Gland plates facilitate flexible cable entry, while coupling provisions allow side-by-side mounting for modular expansion as your requirements grow.

Q: How do the quick-release latches and tamper-proof screws enhance security?

A: Quick-release latches enable fast and tool-free access for routine maintenance, while tamper-proof screws provide an added layer of security by deterring unauthorized access-ensuring protection for critical equipment inside the enclosure.

Q: What benefits does the enclosure material provide in harsh environments?

A: Made from high-grade polycarbonate or ABS, the enclosures are highly resistant to mechanical impact (rated IK08/IK09), UV exposure, and a wide variety of chemicals. The smooth, textured exterior finish and robust insulation offer extra durability and safety across challenging operational settings.
