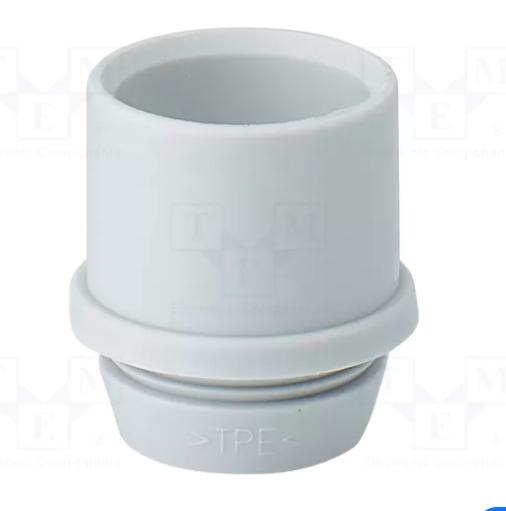

Grommets IP 65 for conduits

Name: Grommets IP 65 for conduits
Brand: Emson Power Engineers
Price: 147.0 INR
Availability: InStock

Price 147.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Grommets IP 65 for conduits Specification

Feature
Weatherproof, Dustproof, Oil-resistant

Shape
Circular

Humidity %
Up to 95% RH, non-condensing

Mounting Type
Panel Mount / Snap-In

Surface Finish
Smooth / Matte

Operating Temperature
-30C to +100C

Overheating Protection
Yes (material withstands high temperatures)

IP Rating
IP65

Insulation Material
EPDM Rubber / PA6

Product Type
Cable Grommet for Conduits

Application
Sealing conduits/cables, electrical panels, and enclosures

Protection Level
IP 65

Rated Voltage
Up to 500V

Color
Black (Standard), Grey on request

Dimension (L*W*H)
Varies with model (e.g., 12-32 mm)

Weight
3 Kilograms (kg)

Size
For conduit diameters 12mm, 16mm, 20mm, 25mm, 32mm (other sizes available)

Phase
PHASE 3

Material
EPDM Rubber / Polyamide (Nylon)

Connection Type
Through-hole/Push fit

Compliance
RoHS Compliant

Hole Size Required
Depends on outer diameter: typically 12, 16, 20, 25, 32mm

Cable Diameter Range
4mm to 34mm (depends on grommet type)

Ingress Protection Method
Integrated sealing lip and tight fit

Fire Resistance
Self-extinguishing to UL94 V-2

Reusable
Yes, flexible design allows repeated use

Tensile Strength
>10 MPa (for standard EPDM rubber)

Chemical Resistance
Good resistance to oils and chemicals

UV Resistance
Yes, suitable for outdoor use

Grommets IP 65 for conduits Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Grommets IP 65 for conduits

Grommets for conduits
for knockouts M 32
conduit connection M 32
bore-hole: 32.5 mm
wall thickness 1.5-3.2 mm
for indoor - normal environment and (or) protected outdoor installation
ambient temperature - 25 C to + 35 C
glow wire test IEC 60695-2-11: 750 C
colour: grey, RAL 7035
degree of protection: IP 65

Superior Weatherproof and Chemical-Resistant Performance

These IP 65 grommets are engineered for outdoor and industrial environments, providing outstanding protection against dust, water, and a variety of oils and chemicals. The robust EPDM Rubber or Polyamide construction ensures long-lasting operation and excellent resistance to degradation caused by UV light and harsh weather conditions.

Flexible and Reusable Design

With a flexible material composition, these grommets allow for easy installation and removal, making them ideal for scenarios where cables may need to be routed, replaced, or reconfigured. The design maintains a reliable seal even after repeated use, saving time and reducing waste.

Certified Safety and Compliance

The grommets meet key international standards, including UL94 V-2 self-extinguishing fire resistance and RoHS compliance. This ensures that installations not only meet regulatory requirements but also offer additional safety for critical electrical applications.

FAQ's of Grommets IP 65 for conduits:

Q: How do I choose the right grommet size for my conduit?

A: To select the correct grommet, consider both your conduit and cable diameters. These grommets are available for conduit diameters of 12, 16, 20, 25, and 32mm, with corresponding cable diameter ranges from 4mm up to 34mm, depending on the model. Verify the hole size that matches your enclosure panel as well.

Q: What makes these IP 65 grommets suitable for outdoor use?

A: Their high ingress protection rating (IP65), UV resistance, and robust chemical and oil resistance make them perfect for harsh outdoor environments. The tight-fit sealing lip prevents dust and water ingress, ensuring dependable performance all year round.

Q: When should I use these grommets in electrical applications?

A: These grommets should be used whenever you need a reliable seal around cables or conduits entering electrical panels, junction boxes, or enclosures-particularly when exposure to dust, water, chemicals, or sunlight is a concern.

Q: Where can these grommets be installed?

A: These grommets are designed for panel mounting or snap-in installation on electrical enclosures, switchgear panels, machinery housings, and other equipment requiring cable or conduit entry points, both indoors and outdoors.

Q: What is the installation process for these grommets?

A: First, select the correct grommet size based on your conduit and panel hole diameter. Insert the grommet into the panel hole using the push-fit or snap-in method. Route the cable or conduit through the grommet. The integrated sealing lip ensures a tight, weatherproof fit.

Q: How does the fire resistance benefit my project?

A: These grommets are self-extinguishing to UL94 V-2 standard, reducing fire risk and enhancing the overall safety profile of your installations-especially in critical industrial and commercial settings where elevated temperatures and electrical safety are prioritized.

Q: Are these grommets reusable, and if so, how?

A: Yes, these grommets are designed for repeated use. Their flexible EPDM or Polyamide construction allows them to be removed and reinstalled without losing their sealing effectiveness, making them cost-effective for projects with evolving cabling needs.
