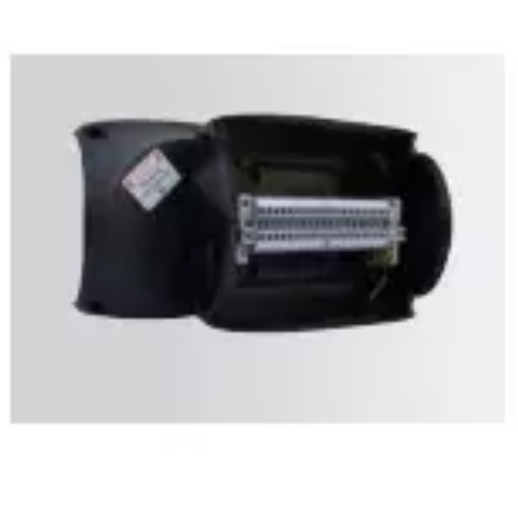

Terminal boxes for weatherproof and outdoor installations

Send Inquiry

Request To Call Back

Terminal boxes for weatherproof and outdoor installations

Name: Terminal boxes for weatherproof and outdoor installations
Brand: Emson Power Engineers
Price: 2540.0 INR
Availability: InStock

Price 2540.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Terminal boxes for weatherproof and outdoor installations Specification

IP Rating
IP65

Humidity %
Up to 95% RH (Non-condensing)

Feature
Weatherproof, UV Resistant, Dust Tight Lid, Padlock Provision

Operating Temperature
-40C to +80C

Insulation Material
High Impact Polycarbonate

Surface Finish
Smooth, Matt

Shape
Rectangular

Connector Type
Brass/Copper Terminal Blocks

Mounting Type
Wall / Surface Mount

Efficiency
N/A (Passive Device)

Product Type
Weatherproof Outdoor Terminal Box

Application
Outdoor Power Distribution, Lighting, Industrial and Commercial Installations

Protection Level
Corrosion Resistant, Moisture-Proof

Frequency (MHz)
50-60 Hz

Rated Voltage
Up to 690 V AC

Energy Consumption
N/A (Passive Device)

Output Type
Terminal Block Output

Color
Grey / Light Grey

Dimension (L*W*H)
200 x 150 x 100 mm (custom sizes available)

Weight
4 Kilograms (kg)

Size
180X130X77

Phase
PHASE 3

Input Voltage
Up to 690 V AC

No Of Poles
Single/Multiple (Configurable)

Material
UV Stabilized Polycarbonate / ABS

Connection Type
Screw Terminal

Fire Resistance
V-0 Flammability Rating

Cover Type
Hinged / Screw Type with Transparent Option

Cable Entry
Knockouts for Gland Entry (Side/Bottom)

Mechanical Impact
IK08

UV Resistance
Yes (Suitable for direct sunlight exposure)

RoHS Compliant
Yes

Standards Compliance
IEC 60529, IS 13947

Earth Terminal Provision
Provided

Gasket Material
EPDM/Rubber for Enhanced Sealing

Terminal boxes for weatherproof and outdoor installations Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Terminal boxes for weatherproof and outdoor installations

Spotlight the unmatched protection and versatility with our Terminal Boxes engineered for inestimable weatherproof performance in outdoor installations. Unlock soaring reliability in lighting, power distribution, and industrial systems with a blend of UV-stabilized polycarbonate/ABS, transparent options, and exceptional IP65 ingress protection. Designed as a virtuoso solution for both single and multiple pole phases, every enclosure is corrosion-resistant, fire-retardant (V-0), and upholds IEC 60529, IS 13947 standards. Knockouts, brass/copper terminals, and robust padlock provisions ensure seamless integration. Choose dependable safety for your critical connections-offered by India's trusted distributor, manufacturer, and supplier.

Engineered for Demanding Outdoor Applications

These terminal boxes are meticulously designed for surface and wall mounting, promising weatherproof and UV-resistant performance across a spectrum of environments. With corrosion resistance, a dust-tight lid, and smooth matt finish, they withstand harsh conditions while being compatible with multiple cable entry options. Ideal for outdoor lighting, industrial complexes, commercial power distribution, and remote installations, they elevate safety and efficiency in power systems with configurable pole options and a secure seal.

Optimized Packaging and Seamless Delivery

Every terminal box is packaged with care, ensuring product integrity during transportation. We offer transparent payment terms, competitive market value, and the lowest price for bulk orders. Shipments are dispatched via your preferred FOB port, providing flexibility and convenience. Our packaging methods safeguard the enclosure from transit damage, so you receive fully secure weatherproof terminal boxes, ready for immediate installation at your site.

FAQ's of Terminal boxes for weatherproof and outdoor installations:

Q: How do the terminal boxes maintain their weatherproof integrity outdoors?

A: The boxes utilize high-impact polycarbonate or ABS material and EPDM/rubber gaskets, ensuring sealing against dust, moisture, and UV rays. Their IP65 rating further guarantees protection, making them suitable for outdoor and direct sunlight environments.

Q: What types of cables and connections are supported by these enclosures?

A: Designed with knockouts for gland entry, the boxes accommodate both side and bottom cable installations. Brass or copper terminal blocks allow secure screw-type connections, supporting single or multiple pole configurations.

Q: When should I choose the transparent cover option for my installation?

A: Opt for the transparent cover when visual inspection of internal connections and components is required without opening the enclosure, especially valuable for control panels and monitoring circuits.

Q: Where can these terminal boxes be installed?

A: Suitable for surface or wall mounting, these boxes are ideal for outdoor power distribution, lighting, industrial automation, and commercial environments, even where high humidity and mechanical impact are factors.

Q: What standards and compliances ensure the safety of these terminal boxes?

A: Each product complies with IEC 60529 and IS 13947, offers V-0 flame resistance, IK08 impact protection, RoHS compliance, and supports up to 690 V AC, ensuring optimal safety in varied applications.

Q: How does the ordering and delivery process work for bulk purchases?

A: Upon order placement, we coordinate packaging for secure transport, provide competitive pricing, and ship via your selected FOB port. This approach ensures timely and safe arrival for both domestic and export markets.
