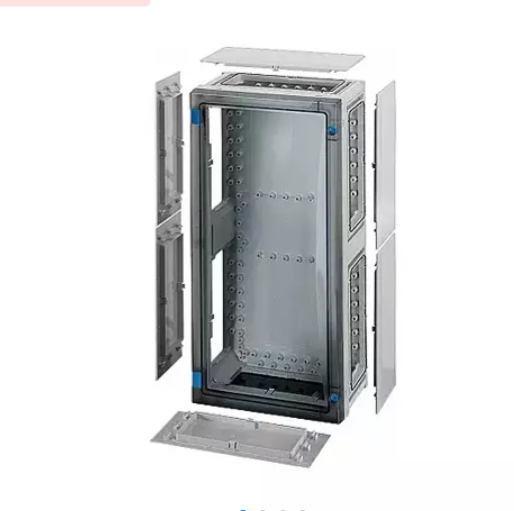

Enystar Empty Enclosures

Name: Enystar Empty Enclosures
Brand: Emson Power Engineers
Price: 14385.0 INR
Availability: InStock

Price 14385.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Enystar Empty Enclosures Specification

Surface Finish
Matte

Insulation Material
Polycarbonate

Humidity %
Up to 95% (non-condensing)

Feature
UV Resistant, Corrosion Proof, Modular Design

Operating Temperature
-25C to +40C

IP Rating
IP66

Mounting Type
Wall/Ceiling/Panel Mountable

Shape
Rectangular

Product Type
Empty Enclosure

Application
Industrial and Commercial Panel Installations

Protection Level
High Mechanical and Chemical Resistance

Frequency (MHz)
50-60 Hz

Rated Voltage
690 V AC

Color
Light Grey (RAL 7035)

Dimension (L*W*H)
300 x 400 x 170 mm

Weight
5 Kilograms (kg)

Phase
PHASE 3

Size
Medium

Connection Type
Screw Terminal Ready

Material
Polycarbonate

Cable Entry Options
Knockouts on All Sides

Fire Rating
UL94-V2

Standards Compliance
IEC 60670, EN 62208, CE Certified

Accessories Provision
Mounting Plates, DIN Rails, Terminal Blocks Compatible

Transparent Cover Option
Available on Request

Cover Type
Opaque Hinged Cover with Lockable Latches

Impact Resistance
IK08

Enystar Empty Enclosures Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Enystar Empty Enclosures

Combinable enclosure system with door for the assembly of distribution boards up to 250 A to be opperated by ordinary persons (DBO) in accordance with IEC 61439-3 for surface-mounting. Enclosures are suitable for the outdoor installation - harsh environment and / or outdoor, however the climatic influences and effects on the equipment are to be considered. Bottom parts and doors are made from impact-resistant polycarbonate, halogen- and silicone-free, colour RAL 7035. All enclosures with doors, which are lockable and sealable. Operation of device behind the doors. Burning behavior in accordance with IEC 60695-2-11 Glow wire test + 960 C. Protective measure: protective insulation (protection class II). Make: Hensel ENYSTAR.

Reliable Safety and Compliance

The Enystar enclosure meets stringent international certifications such as IEC 60670, EN 62208, CE, and UL94-V2, assuring installation safety and compliance. Its fire-resistant and impact-tested polycarbonate construction safeguards sensitive electrical components, making it suitable for challenging industrial and commercial applications.

Flexible Installation and Customization

Designed for effortless adaptability, the enclosure features knockouts on all sides, multiple mounting options (wall, ceiling, or panel), and compatibility with essential accessories such as DIN rails and terminal blocks. Its modular design simplifies system upgrades, and a transparent cover option can be requested for enhanced visibility.

Durability Meets Functionality

With a high IP66 ingress protection level, outstanding UV and corrosion resistance, and impact resistance rated at IK08, the Enystar enclosure thrives in harsh environments. Its robust polycarbonate construction ensures reliable performance from -25C to +40C, even in humid conditions up to 95% (non-condensing).

FAQ's of Enystar Empty Enclosures:

Q: What types of environments are suitable for installing the Enystar Empty Enclosure?

A: These enclosures are tailored for industrial and commercial settings where high mechanical and chemical resistance, as well as environmental protection, are essential. Rated IP66 and constructed from UV- and corrosion-resistant polycarbonate, they operate reliably from -25C to +40C in up to 95% humidity.

Q: How can I introduce cables into the enclosure, and is it customizable for accessory integration?

A: Cables are easily managed using knockouts located on all sides, providing flexibility for entry points. The enclosure accommodates mounting plates, DIN rails, and terminal blocks, supporting customization for your specific panel installation requirements.

Q: What certifications and standards does this enclosure comply with?

A: This product is fully compliant with IEC 60670, EN 62208, CE certifications, and has a UL94-V2 fire rating. Such standards guarantee that it meets international safety, fire resistance, and quality benchmarks for electrical enclosures.

Q: When should I consider requesting a transparent cover instead of the standard opaque version?

A: A transparent cover is advantageous when regular visual inspection of internal components is necessary, without opening the enclosure. Simply request this option during ordering if your application requires component visibility.

Q: Where can I mount the Enystar enclosure, and what mounting options are available?

A: The enclosure is designed to be mountable on walls, ceilings, or panels, providing versatility for various installation sites. It is medium-sized and comes equipped for secure and straightforward mounting in multiple configurations.

Q: What benefits does the modular design offer during installation and future expansion?

A: The modular design streamlines installation and allows for simple upgrades or system expansions. Integrating additional terminal blocks or DIN rails is straightforward, ensuring your setup remains adaptable as your operational requirements evolve.

Q: How does the enclosure ensure safety in high-voltage and high-humidity conditions?

A: Tested for up to 690 V AC and 95% non-condensing humidity, the enclosure's polycarbonate construction and secure locking latches prevent ingress, safeguarding both operators and electrical components against potential environmental hazards.
