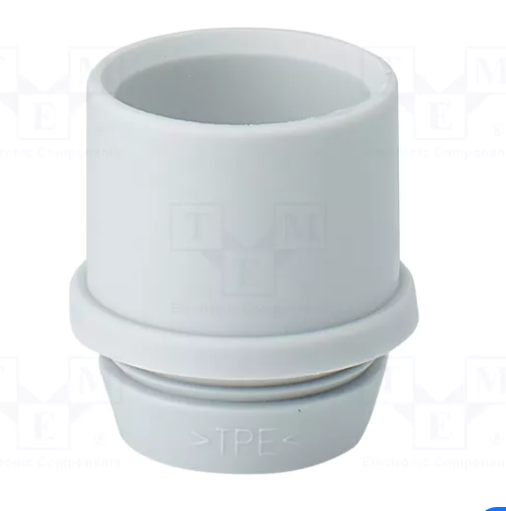

Grommets IP 65 for conduits

Name: Grommets IP 65 for conduits
Brand: Emson Power Engineers
Price: 287.0 INR
Availability: InStock

Price 287.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Grommets IP 65 for conduits Specification

Efficiency
100% sealing upon proper fitting

Mounting Type
Panel Mount, Snap Fit

Shape
Round

Surface Finish
Smooth or Textured

Insulation Material
Rubber/TPE

Humidity %
up to 95% RH

Operating Temperature
-25C to +90C

Feature
UV Resistant, Weatherproof, Flexible

Overheating Protection
Yes, by isolating cables

IP Rating
IP 65

Product Type
Conduit Grommet

Application
Sealing conduit entries, electrical cable protection, automation panels, enclosures

Protection Level
Dust and water tight

Rated Voltage
Up to 400V

Color
Black

Dimension (L*W*H)
Varies by model (e.g. 16mm - 50mm)

Weight
3 Kilograms (kg)

Size
16mm, 20mm, 25mm, 32mm, 40mm, 50mm (ID/OD sizes available)

Phase
PHASE 3

Connection Type
Push-fit

Material
High-Quality Rubber, Thermoplastic Elastomer (TPE)

Halogen Free
Available (optional)

Compression Strength
Standard as per EN 60670

Chemical Resistance
Resistant to oils, greases, and mild acids

Fire Retardancy
UL94 V-2 or V-0 grade (Optional)

Reusability
Reusable for multiple installations

Grommets IP 65 for conduits Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

About Grommets IP 65 for conduits

Grommets for conduits
for knockouts M 40
conduit connection M 40
bore-hole: 40.5 mm
wall thickness 1.5-3.2 mm
for indoor - normal environment and (or) protected outdoor installation
ambient temperature - 25 C to + 35 C
glow wire test IEC 60695-2-11: 750 C
colour: grey, RAL 7035
degree of protection: IP 65

Superior Chemical Resistance for Demanding Environments

Our grommets are engineered to withstand exposure to oils, greases, and mild acids, making them perfect for applications in industrial, automotive, and automation settings where chemical resistance is essential. The use of high-quality rubber and TPE ensures long-lasting protection for cables and conduits, safeguarding sensitive equipment even in harsh conditions.

Reliable Weatherproof and Dustproof Sealing

With an IP65 rating, these grommets provide complete protection against dust ingress and water jets, ensuring safety and operational reliability for electrical installations. Their UV resistance and wide operating temperature range (-25C to +90C) make them ideal for both indoor and extreme outdoor environments.

Flexible Installation and Reusability

Designed for easy and fast installation, our grommets feature push-fit, snap-fit, and panel mount connection types. Their reusability allows for convenient repositioning or multiple installations without compromising sealing efficiency, providing cost-effective and sustainable solutions for contractors and maintenance teams.

FAQ's of Grommets IP 65 for conduits:

Q: How do IP65 grommets enhance the protection of electrical cabling in industrial applications?

A: IP65 grommets offer superior sealing that prevents dust and water ingress, protecting cables and conduits from environmental hazards. Their chemical resistance and fire-retardant properties add a further layer of safety, while insulating materials like rubber and TPE ensure reliable performance in demanding settings.

Q: What are the benefits of using halogen-free grommets in automation panels?

A: Halogen-free grommets, available as an option, reduce the risk of toxic fume production in case of fire, enhancing safety for personnel and reducing equipment damage. They are particularly suited for sensitive environments where fire retardancy and minimal hazardous emissions are required.

Q: When should I choose a reusable grommet over a standard non-reusable type?

A: Reusable grommets are ideal when frequent adjustments or repositioning of cables is expected. Their robust design allows for multiple installations and removals without degrading sealing performance or mechanical integrity, providing flexibility and cost savings.

Q: Where are these grommets most commonly used in electrical and automation systems?

A: These IP65 grommets are widely used in device enclosures, junction boxes, automation panels, and outdoor electrical installations. They effectively seal conduit entries, preventing environmental ingress while managing cable routing efficiently.

Q: What is the process for installing these grommets to achieve maximum sealing efficiency?

A: For optimal sealing, select the appropriate grommet size based on cable and conduit diameter. Install using the snap-fit or panel mount feature, ensuring a snug, push-fit connection. Proper fitting will guarantee 100% sealing as designed, following manufacturer guidelines.

Q: Can these grommets withstand outdoor environmental exposure over extended periods?

A: Yes, the high-quality materials combined with UV-resistant and weatherproof features enable these grommets to perform reliably in outdoor settings, withstanding exposure to direct sunlight, rain, and fluctuating temperatures from -25C to +90C.
